No interplate gaskets
Welded channels eliminate gaskets between heat-transfer plates.
PANSTAR designs and manufactures fully welded block heat exchangers for demanding industrial process applications. The HEXCBLOC range supports new installations and replacement engineering for chemical, petrochemical, refining, oil & gas, energy and heat recovery services.

Compare the construction against your process duty, available space and maintenance requirements.
Welded channels eliminate gaskets between heat-transfer plates.
A corrugated welded plate pack concentrates heat-transfer area in a compact block.
Removable side panels provide access for inspection and mechanical cleaning.
Welded construction supports demanding process duties within the selected design limits.
Replacement solutions for existing Alfa Laval Compabloc and GEA / Kelvion K°Bloc installations, subject to engineering review.
Review the welded core, plate pattern, materials, baffles and interfaces with the existing casing. Retained components require inspection.
Request replacement assessment ↗Assess a complete exchanger against the thermal duty, design conditions, nozzle arrangement, supports and available service space.
Request replacement assessment ↗Evaluate a complete-unit alternative for the existing installation. K°Bloc core interchange is not offered.
Request replacement assessment ↗Send the nameplate, datasheet, general arrangement drawing and operating conditions. Compatibility is confirmed for each project; model numbers alone do not establish a direct fit.

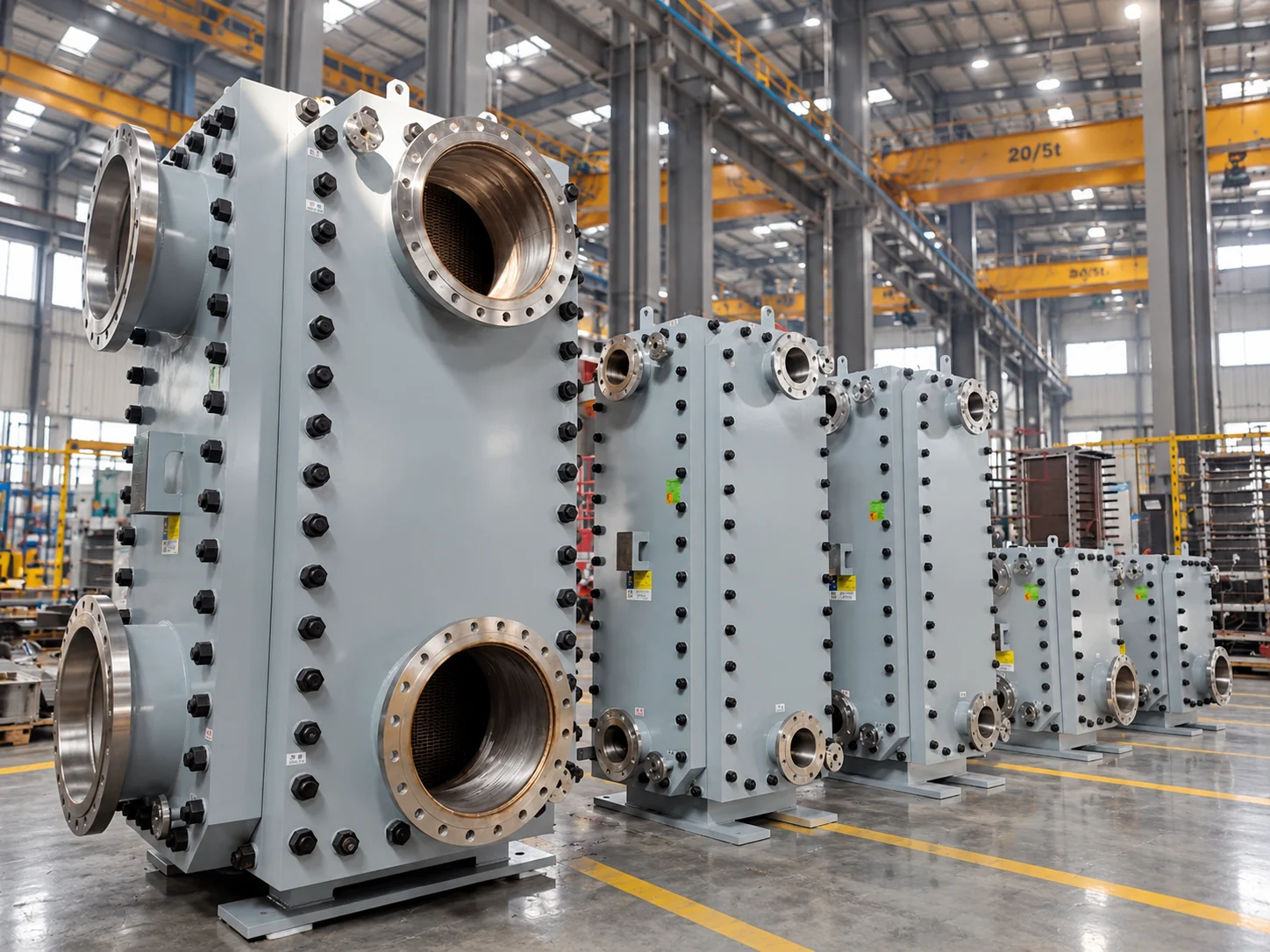

A compact welded core, accessible construction and a configuration selected for your operating conditions.

Corrugated plates form a compact heat-transfer core. Accessible panels and a serviceable construction support inspection, cleaning and maintenance.
Bring heating, cooling and heat recovery into a compact equipment layout. Selection starts with your thermal duty and available space.

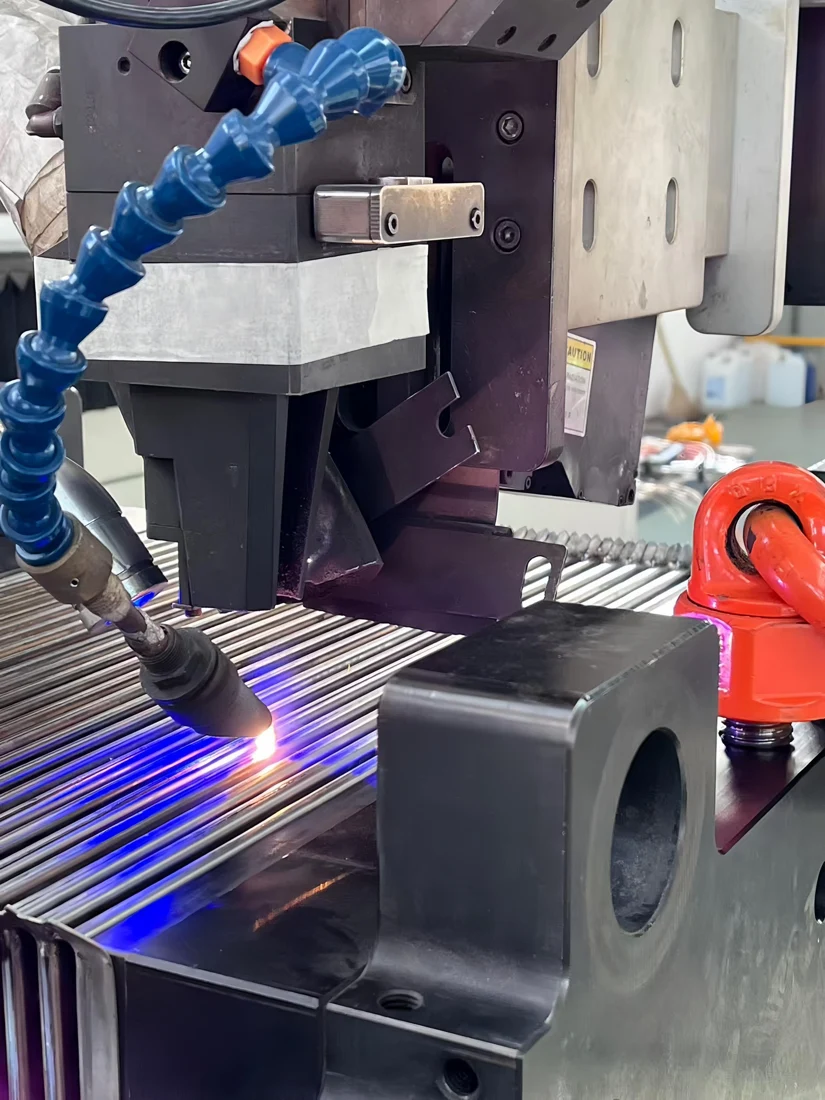

Automatic laser welding and butt-joint construction are part of PANSTAR’s documented welded-product manufacturing process.
Mechanical cleaning access and accessible welds help make inspection and maintenance part of the equipment lifecycle.

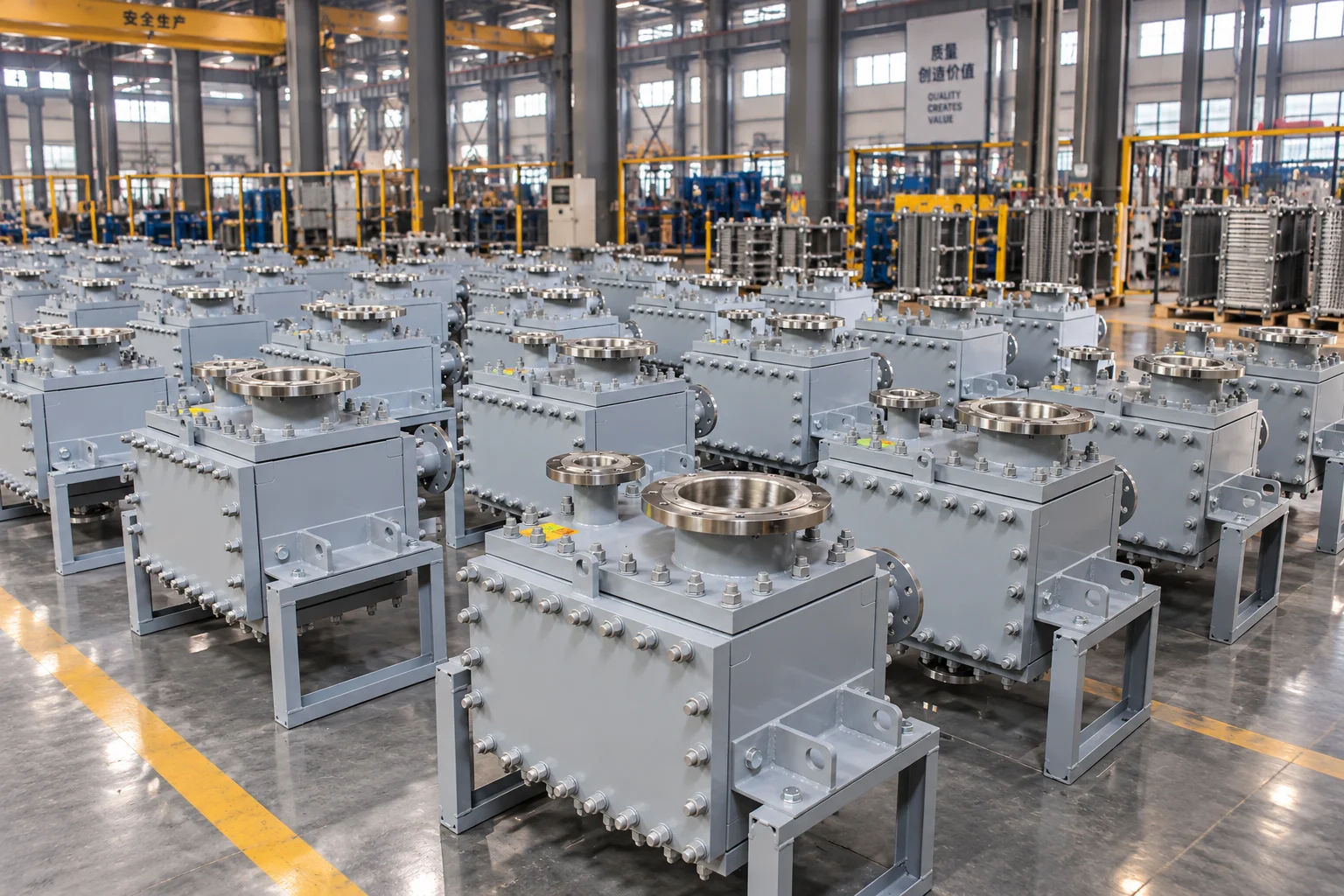

Explore PANSTAR’s production facilities, plate-forming capability and laser-welding process. Review the documentation relevant to your equipment and project.
Review two documented projects: a CP75 welded plate pack replacement and a complete-unit replacement. Each record identifies the equipment and confirmed supply scope.
Send us the existing datasheet, nameplate or GA drawing. We can review the duty, dimensions, nozzle arrangement and mechanical requirements before preparing a replacement proposal.
Provide both fluids, flow rates, inlet and outlet temperatures, operating and design pressures, allowable pressure drop and material requirements. For a replacement, include the nameplate and arrangement drawing.
