PROJECT RECORD · PETROCHEMICAL
Complete welded block exchanger replacement
A complete-unit replacement project for a petrochemical customer.

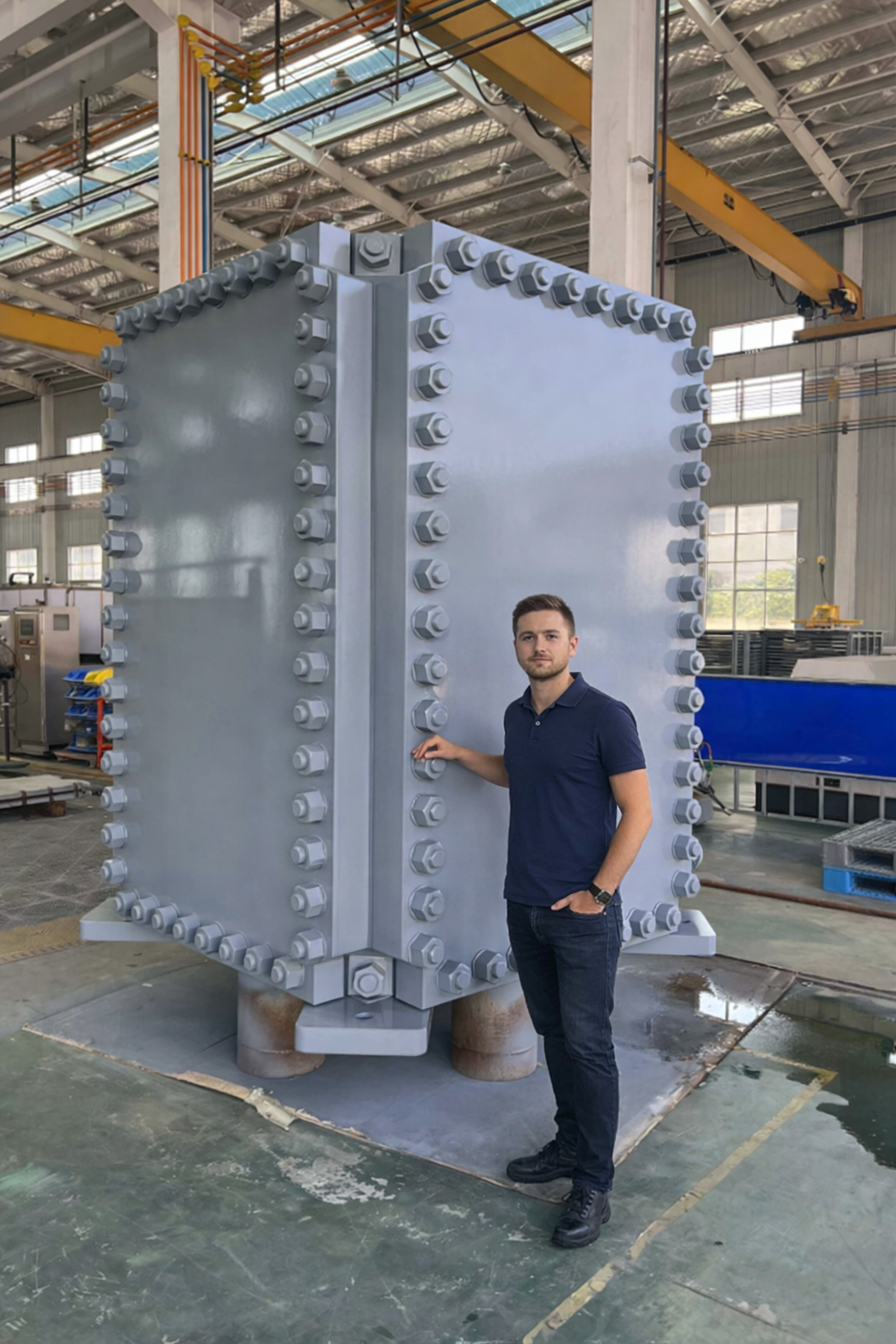

Customer-supplied project photograph. Detailed operating records are not published.
- Existing unit
- An existing heat exchanger in petrochemical service. Its manufacturer and model have not been provided for publication.
- Duty
- Petrochemical process service; the detailed process duty has not been provided.
- Problem
- Complete-unit replacement was the selected scope. The reason for replacement has not been documented for publication.
- Scope
- A complete welded block heat exchanger, rather than a replacement plate pack alone.
- Material
- The supplied material grade and seal specification have not been provided for publication.
- Verification
- The project photograph is available; dimensional, pressure-test and performance acceptance records have not been provided.
- Result
- The project record identifies the complete-unit replacement scope. No quantified performance improvement or operating history is claimed.
PANSTAR equipment is offered as an engineered alternative. Alfa Laval, Compabloc, GEA and Kelvion names identify existing equipment; no OEM origin or affiliation is claimed. Compatibility is assessed for each project.
Send Your Process Data for Heat Exchanger Selection
Provide both fluids, flow rates, inlet and outlet temperatures, operating and design pressures, allowable pressure drop and material requirements. For a replacement, include the nameplate and arrangement drawing.
