Separate welded channels
Alternating channels keep the fluids separated by the formed metal plates. Heat passes through the plate walls.
Working principle ↗WELDED BLOCK HEAT EXCHANGER
HEXCBLOC 40

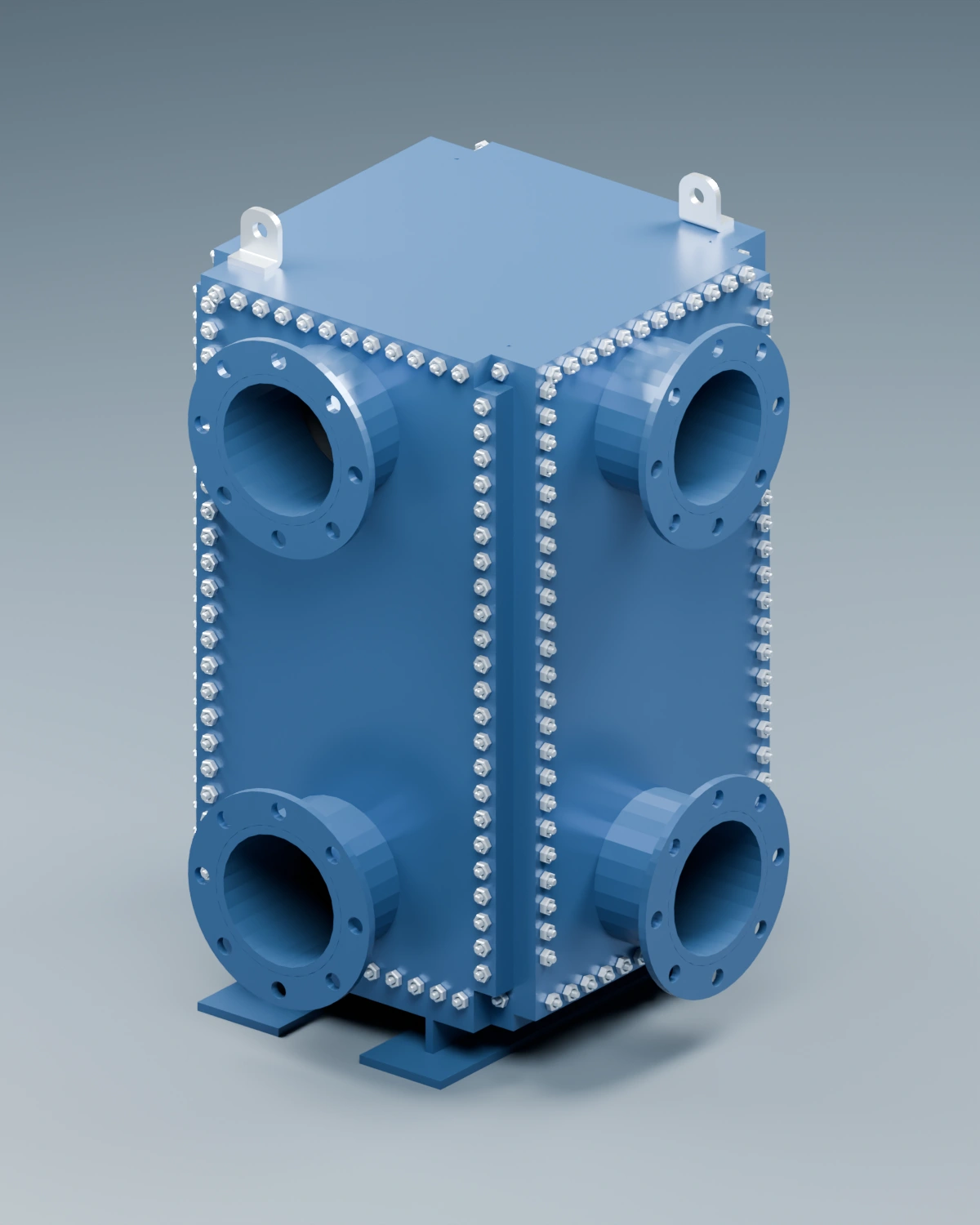

A welded plate pack in an accessible block construction for process heating, cooling and heat recovery. The final plate pack and flow arrangement are selected for your operating duty.
MODEL SPECIFICATIONS
HEXCBLOC 40
| Model | HEXCBLOC 40 |
|---|---|
| Maximum dimensions (A × A × B) | 600 × 600 × 1,400 mm |
| Standard pressure range | Full vacuum to 32 bar |
| Standard temperature range | −40 °C — 300 °C |
| Plate materials | AISI 304L / 316L · Titanium · 904L · 254 SMO · other alloys by selection |
| Panel seals | Graphite / PTFE |
| Construction | Fully welded plate pack with removable side panels |
| Flow arrangement | Cross-flow; baffled multi-pass arrangements available |
DIMENSIONS
600 × 600 × 1,400
mm
Maximum envelope: A × A × B. A defines the two plan dimensions; B is the overall height. This schematic identifies the dimension directions.
Reference dimensions only. Confirm nozzle positions, support details, service clearances and final dimensions against the approved order drawing.
DESIGN & SELECTION
Specify the duty.
Complete the configuration.
Share both fluids, flow rates, inlet and outlet temperatures, allowable pressure drop and design conditions. Material, nozzle and pass selections follow these inputs.
Access for maintenance
Removable side panels open access to the welded core for inspection and cleaning. Plan access space around the unit.
Explore construction ↗Project documentation
Request the selected datasheet, general arrangement drawing and applicable quality documents with your proposal.
Request technical documents ↗Published model data are for selection guidance. The approved specification defines the operating envelope and supplied configuration.
